EKL 22207

35/65W TDP Premium Cooler for INTEL® Socket LGA 17XX / 1851
Optimum cooling performance for Intel® processors

Product description

With an extremely low height of just 30mm, the EKL 22207 is ideal for compact PC systems in the small form factor range. Especially in this size range, it is often difficult to procure a powerful and quiet CPU cooler. The EKL 22207 overcomes both challenges with flying colours. The combination of an aluminium profile, high-performance thermal compound and a low-vibration PWM-controlled fan guarantees quiet and extremely effective heat dissipation.
35W according to Intel specifications. 65W at intake temperature up to 40°C.

Main features

  • Powerful top-flow design
  • High-performance thermal paste
  • Quiet and low-vibration 80 mm PWM fan
  • Simple and tool-free push-pin assembly for Intel® socket LGA 17XX

Cooler properties

Retail article number22210021007
EAN Retail4250280331837
Power loss35/65¹W TDP
MaterialAluminium
Weight152 g
Packaging unit32
suitable forINTEL® Socket LGA 17XX / 1851

Fan properties

Width90 mm
Length90 mm
Height30 mm
Speed min.500 U/min
Speed max.2700 U/min
WarehouseBall/slide bearing
Operating voltage12 VDC
Volume flow52.5 m³/h
Noise level min.21 dB(A)
Noise level max.35 dB(A)
Service life L1040000 h by 40 °C

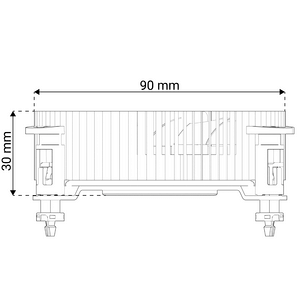

Dimensions

abmessungen
